Product Description:
0.12-0.4mm - conductor: bare copper wire
Insulator: PVC
Rated voltage: 300V/300V
Power frequency withstand voltage test: 1500V
Temperature range: -15 ~ +70 ~ +90 C -15 C
Conductor: bare copper wire
Braided shield: No.
Product application: used for general electronics, electrical power supply connection or plug line.
Reference standard: JB/T8734.4-2012

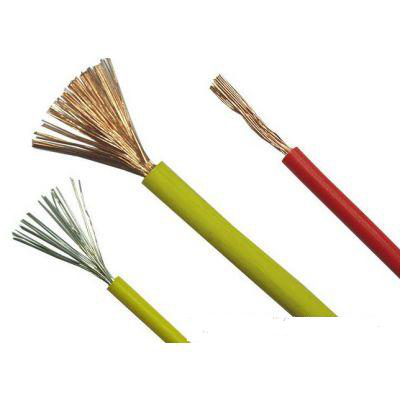

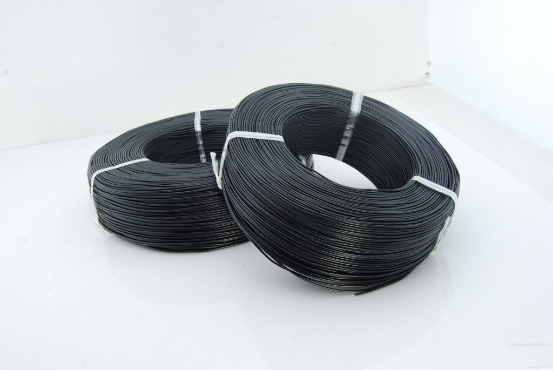

Copper conductor PVC insulated and installed flexible wire AVR, AVR-90
|
conductor cross-section（㎜²）
|
Maximum diameter of single wire in conductor（㎜）
|
Specified value of insulation thickness（㎜）
|
Average outside diameter
|
20 when the conductor maximum resistance
Omega /km
|
Minimum value of insulation resistance at 70 or 90
M /km
|
|
Copper core
|
Tin plated copper core
|
|
0.12
|
0.16
|
0.4
|
1.5
|
158
|
163
|
0.016
|
|
0.2
|
0.16
|
0.4
|
1.6
|
92.3
|
95.0
|
0.014
|
|
0.3
|
0.16
|
0.5
|
2.0
|
69.2
|
71.2
|
0.014
|
|
0.4
|
0.16
|
0.5
|
2.1
|
48.2
|
48.6
|
0.012
|
|
 |
|
