Product Description:
0.5-2.5mm - conductor: bare copper wire
Insulator: PVC
Rated voltage: 300V/500V
Power frequency withstand voltage test: 1500V
Temperature range: -15 ~ +70 ~ +90 C -15 C
Conductor: bare copper wire
Braided shield: No.
Product application: general electronics, electrical equipment, internal wiring
Reference standard: GB/T 5023.3-2008

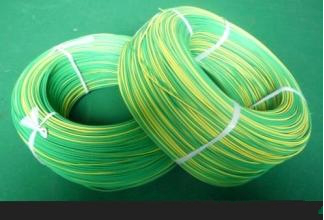

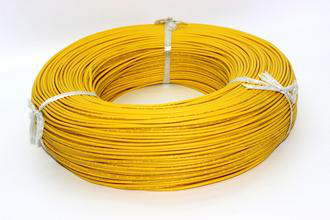

Copper conductor PVC insulated and installed flexible wire RV-90
|
conductor cross-section（㎜²）
|
Root number / diameter
Mm
|
Insulation thickness mm
|
The largest diameter mm
|
20 when the conductor maximum resistance
Omega /km
|
Minimum value of insulation resistance at 70 or 90
M /km
|
|
0.5
|
16/0.20AS
|
0.6
|
2.6
|
39.0
|
0.013
|
|
0.75
|
24/0.20AS
|
0.6
|
2.8
|
26.0
|
0.011
|
|
1.0
|
32/0.20AS
|
0.6
|
3.0
|
19.5
|
0.010
|
|
1.5
|
48/0.20AS
|
0.7
|
3.5
|
13.3
|
0.010
|
|
2.5
|
49/0.25AS
|
0.8
|
4.2
|
7.98
|
0.009
|

|
 |
|
