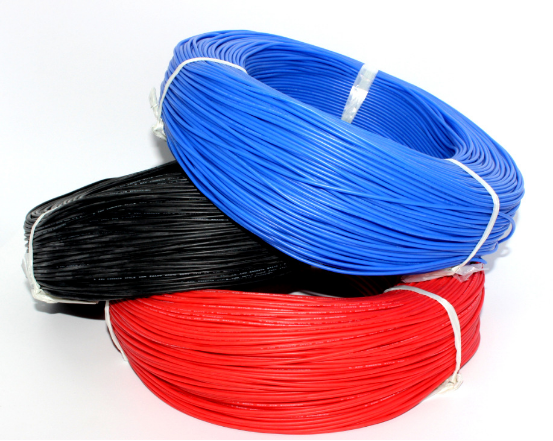

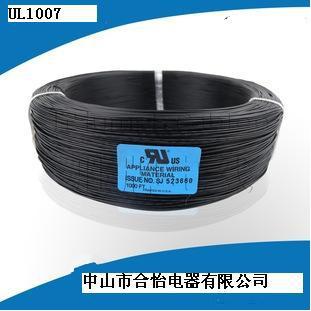

Product Description:
Conductor: 1007#12-1007#28 tin plated wire
UL certification: E313976
Insulator: PVC
Rated voltage: 300V
Temperature range: -15 ~ +70 ~ +90 C -15 C
Conductor: tinned copper wire
Braided shield: No.
Product application: general commercial in the electronics, electronic equipment and equipment internal connection line, the motor transformer and the lamp lead wire, etc..
Reference standard: UL758
|
UL Style
&
CSA Type
|
Conductor
|
Lnsulation
Thickness
|
Overall
Dimeter
|
Stand Put-up
|
Conductor
Resistance at 20℃
|
|
Line number
|
Line number / line diameter
|
Inch
|
Metric
|
|
AWG
|
NO/mm
|
mm
|
mm
|
Ft/coil
|
M/coil
|
Ω/km
|
|
UL1007
CSA T1(TR-64)
(Stranded)
|
30
|
7/0.102
|
0.42
|
1.10±0.10
|
2000
|
610
|
114.4
|
|
28
|
7/0.12
|
0.41
|
1.20±0.10
|
2000
|
610
|
72.0
|
|
26
|
7/0.160
|
0.41
|
1.30±0.10
|
2000
|
610
|
45.2
|
|
24
|
11/0.160
|
0.40
|
1.40±0.10
|
2000
|
610
|
27.25
|
|
22
|
17/0.160
|
0.42
|
1.60±0.10
|
2000
|
610
|
16.7
|
|
20
|
21/0.178
|
0.42
|
1.80±0.10
|
2000
|
610
|
10.4
|
|
18
|
34/0.178
|
0.41
|
2.10±0.10
|
2000
|
610
|
6.64
|
|
16
|
26/0.254
|
0.43
|
2.40±0.10
|
1000
|
305
|
4.18
|
|
 |
|
