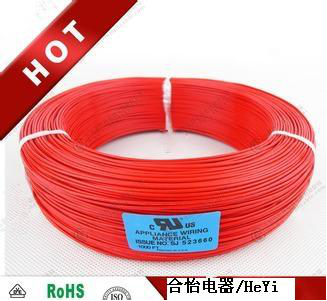

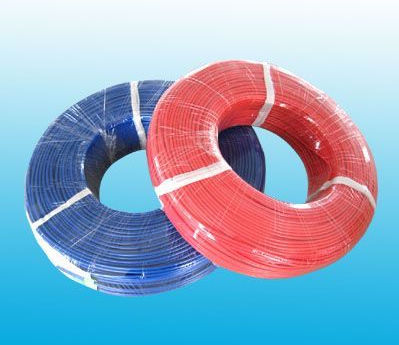

Product Description:
Specification model: 26#-1015#10 UL1015
UL certification: E313976
Insulator: PVC
Rated temperature: 105,
Rated voltage: 600V.
By VW-1 UL and Ft1 CSA vertical flame resistance test.
Conductor: tinned copper wire
Braided shield: No.
Product application: can be widely used in electric toys, electronics, electrical equipment, internal connection line, computer power cord
Reference standard: UL758
|
Part No
|
Conductor
|
Inaulation
|
Conductor resistance
Ω/km
|
|
AWG
|
Line number / line diameter
|
external diameter
|
Insulation thickness
|
external diameter
|
|
1015
|
26
|
7/0.16
|
0.48
|
0.82
|
2.12
|
139
|
|
1015
|
24
|
11/0.16
|
0.61
|
0.79
|
2.2
|
88.9
|
|
1015
|
22
|
17/0.16
|
0.76
|
0.82
|
2.40
|
57.5
|
|
1015
|
20
|
21/0.18
|
0.94
|
0.82
|
2.55
|
34.6
|
|
1015
|
18
|
34/0.18
|
1.16
|
0.82
|
2.75
|
23.3
|
|
1015
|
16
|
26/0.254
|
1.49
|
0.79
|
3.1
|
15.1
|
|
1015
|
14
|
41/0.254
|
1.87
|
0.79
|
3.5
|
9.2
|
|
1015
|
12
|
65/0.254
|
2.36
|
0.79
|
3.9
|
5.4
|
|
1015
|
10
|
66/0.32
|
3.00
|
0.79
|
4.56
|
4.1
|
|
 |
|
