Product Description:
Specification model: 30AWG-16AWG
UL certification: E313976
Insulator: PVC
Rated temperature: 105,
Rated voltage: 600V.
By UL VW-1 and CSA FT1 vertical flame test
Conductor: tinned copper wire
Braided shield: No.
Product application: household appliances, lighting lamps, electronic equipment, temperature sensors, aerospace, military products, metallurgical and chemical industry, communications, automotive ships, electric power installation, etc..
Reference standard: UL758
|

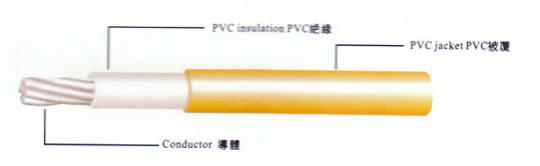

conductor
|
The first layer of insulation
|
Second layer insulation
|
Conductor Impedance Omega /KFT, 20 C
|
Minimum insulation resistance M -Km20 C
|
The compressive strength of AVC, 1min
|
|
Type
|
AWM
|
The structure of No/MM
|
The outer diameter of MM
|
thickness MM
|
external diameter MM
|
thickness MM
|
external diameter MM
|
|
绞合
|
30
|
7/0.10
|
0.30
|
0.80
|
1.90
|
0.40
|
2.70
|
114.40
|
15
|
3000
|
|
28
|
7/0.12
|
0.38
|
0.80
|
1.95
|
0.40
|
2.75
|
72.00
|
15
|
3000
|
|
26
|
7/0.16
|
0.48
|
0.80
|
2.05
|
0.40
|
2.85
|
45.20
|
15
|
3000
|
|
24
|
11/0.16
|
0.61
|
0.80
|
2.20
|
0.40
|
3.00
|
28.30
|
15
|
3000
|
|
22
|
17/0.16
|
0.76
|
0.80
|
2.35
|
0.40
|
3.15
|
16.70
|
15
|
3000
|
|
20
|
26/0.16
|
0.94
|
0.80
|
2.55
|
0.40
|
3.35
|
10.50
|
15
|
3000
|
|
18
|
41/0.16
|
1.20
|
0.80
|
2.80
|
0.40
|
3.60
|
6.64
|
15
|
3000
|
|
16
|
26/0.25
|
0.50
|
0.80
|
3.10
|
0.40
|
3.90
|
4.18
|
15
|
3000
|
|
 |
|
