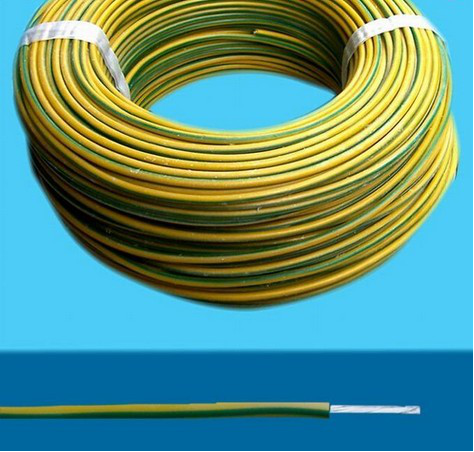

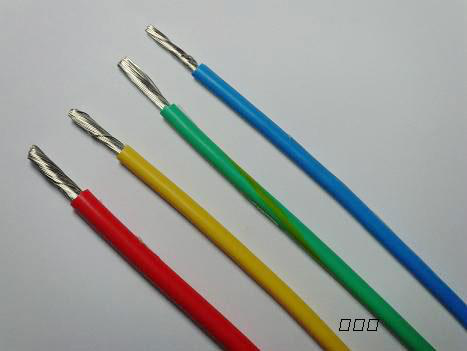

Product Description:
Specifications: HO5V-K0.5 - -HO5V-K1.0 - mm mm
VDE certification: 40042325
Insulator: PVC insulation
Rated temperature: 70,
Rated voltage: 300/500V.
All materials are in line with the REACH environmental protection standard.
Conductor using bare soft copper wire
Braided shield: No.
Product application: the product is suitable for small indoor appliances, household appliances, electric tools, electrical appliances and other products, such as internal connection wire.
According to VDE0821-3, HD21.3 making
|
Type
|
NO.of conductor
|
conductor
|
Insulationthickness（㎜）
|
Overalldiameter（㎜）
|
Max Conductor
Resistance at 20℃Ω/km
|
|
Normal area
㎜²
|
Construction（NO./㎜）
|
|
|
|
|
HO5V-K
|
1
|
0.5㎜²
|
28/0.15或16/0.20
|
0.6
|
2.20＋0.1
|
39.0
|
40.1
|
|
1
|
0.75㎜²
|
42/0.15或24/0.20
|
0.6
|
2.40＋0.1
|
26.0
|
26.7
|
|
1
|
1.0㎜²
|
57/0.15或32、0.20
|
0.6
|
2.55＋0.2
|
19.5
|
20.0
|
|
 |
|
