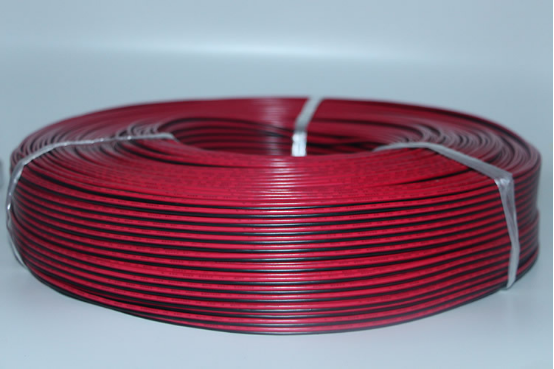

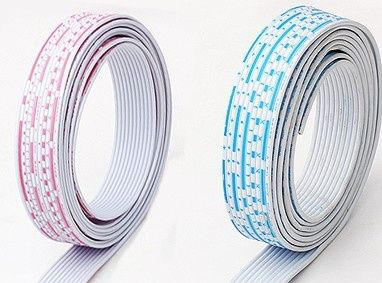

Product Description:
Specification model: 18#-2468#28 UL2468
UL certification: E313976
Insulator: PVC
Rated temperature: 80
Rated voltage: 300V
Through the VW-1 UL and FT1 CSA vertical flame test
Conductor: tinned copper wire
Braided shield: No.
Application: applicable to household appliances, lighting fixtures, electronic equipment, temperature sensors, military products, metallurgy, chemical industry, automobile, electric power installed computer peripherals such as connecting line
Reference standard: UL758
|
Part No
|
Conductor
|
Inaulation
|
Conductor resistance
Omega /km
|
|
|
AWG
|
Line number / line diameter
|
Insulation thickness
|
external diameter
|
|
|
2468
|
28
|
7/0.127
|
0.38
|
1.15*2.3
|
237.25
|
|
2468
|
26
|
7/0.16
|
0.38
|
1.25*2.5
|
148.94
|
|
11/0.16
|
0.38
|
1.25*2.5
|
148.94
|
|
2468
|
24
|
7/0.2
|
0.38
|
1.4*2.8
|
93.25
|
|
19/0.12
|
0.38
|
1.4*2.8
|
93.25
|
|
2468
|
22
|
7/0.254
|
0.38
|
1.5*3
|
55
|
|
17/0.16
|
0.38
|
1.5*3
|
55
|
|
2468
|
20
|
21/0.18
|
0.38
|
1.8*3.6
|
34.6
|
|
2468
|
18
|
34/0.18
|
0.38
|
2*4
|
21.8
|
|
41/0.16
|
0.38
|
2*4
|
21.8
|
|
 |
|
